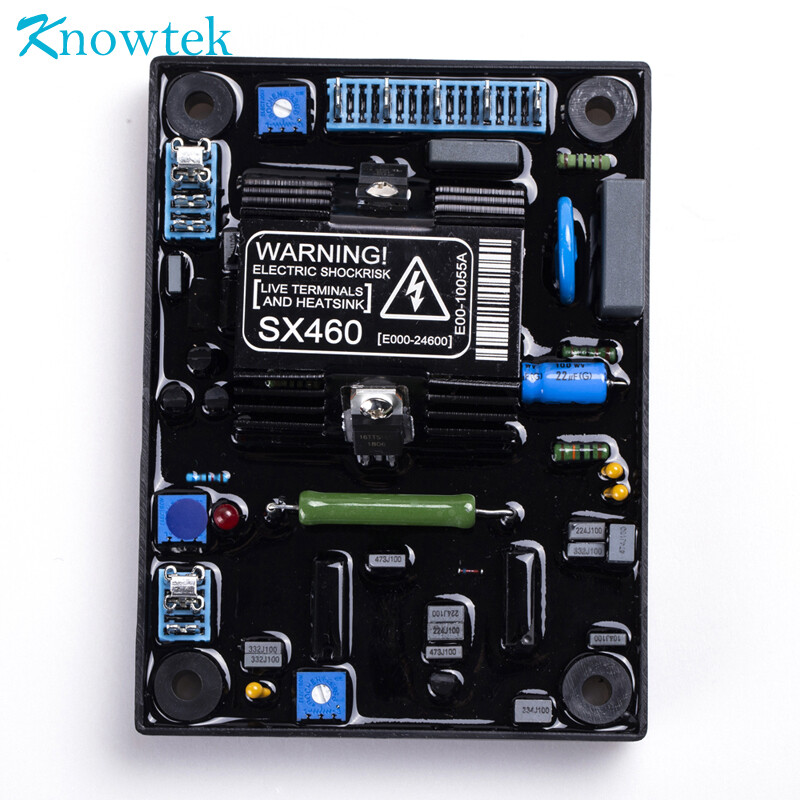

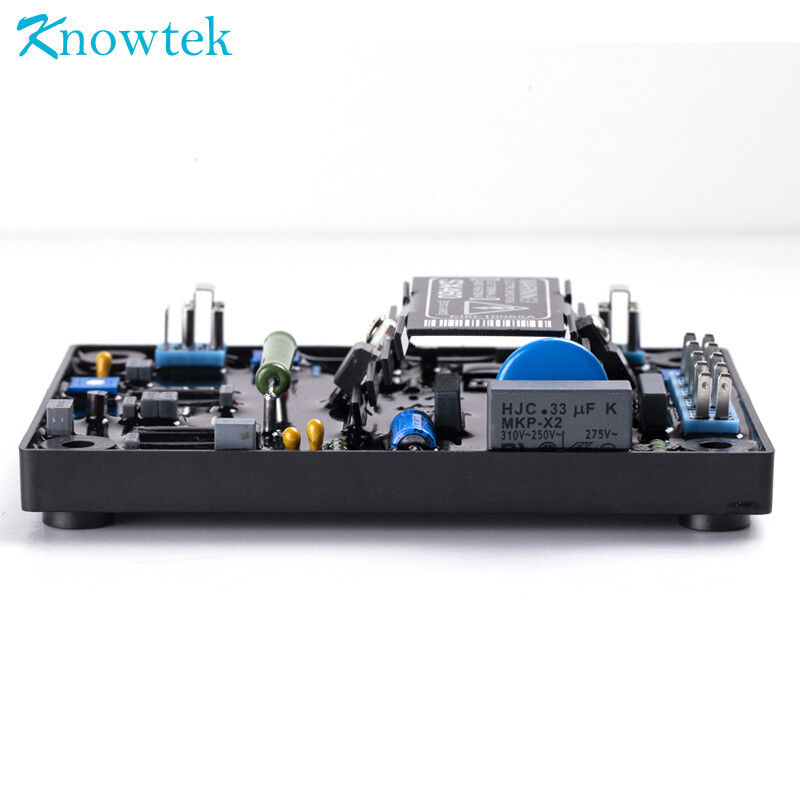

SX460 Automatic Volt Voltage Regulator AVR for brushless Generator alternator
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Model | SX460 |
| MPN | Does Not Apply |
| Brand | KNOWTEK |
| Equipment Type | Voltage Regulator |
Newest 5000 watt ac automatic voltage regulator AVR SX460 AVR SX460 Automatic Voltage Regulator for Generator brushless alternator Replacement For Original Parts We have AVR SX460 in regular stock. Replacement Models:AS440, AS480, SX440, SX460, MX341, MX321, MX450 Original Modules: AS440, AS480, SX460, MX341, MX321, MX450, MX342, MX330, EBC-1, RSK1001, RSK2001, RSK5001, RSK6001 The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones. SAME AVR AS: AVR E000-24602 VOLTAGE REGULATOR AVR E000-26000 VOLTAGE REGULATOR AVR 450-13900 VOLTAGE REGULATOR AVR E000-24600 VOLTAGE REGULATOR AVR 305-0982 VOLTAGE REGULATOR AVR 305-0949 VOLTAGE REGULATOR AVR 594-011 VOLTAGE REGULATOR AVR 594-011 VOLTAGE REGULATOR SX460 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator(AVR) and forms part of the excitation system for a brushless alternator. Technical specification input voltage Jumper selectable 95-132V ac or190-264V ac frequency 50-60 Hz nominal phase 1 output voltage Max 90V dc at 207V ac input Current Continuous 4 A dc Intermittent 6A for 10 secs resistance 15 ohms minimum regulation +/- 1.0% (see note) Thermal drift 0.05% per deg.c change in AVR ambient (note 2) Typical system response AVR response 20 ms Filed current to 90% 80 ms Machine volts to 97% 300ms External voltage adjustment +/- 10% with 1 k ohm 1 watt trimmer(see note 3) Under frequency protection Set point 95% Hz(see note 4 ) slope 170% down to 30 Hz Unit power dissipation 10 watts maximum Build up voltage 4 volts @ AVR terminals Environmental Vibration 20-100 Hz 50mm/sec 100 Hz 2kHz 3.3g Operating temperature -40 to + 70c Relative humidity 0-70c 95% (see note 5) Storage temperature -55 to +80c Packaging Details Package of ac AVR SX460: polybag + carton box +manualSize of ac AVR SX460: 160mm*110mm*50mm 6.3*4.3*2 INCHWeight of ac AVR SX460: 0.32kgs Shipment term 1. We Ship to Worldwide, except APO/FPO 2. We ship to USA by Standard SpeedPAK or other standard shipping way. 3. Economic shipping to worldwide by china post / ePaket... Will take longer shipping time. 4. Expedited international shipping by DHL/UPS/Fedex.... 5. Orders processed timely after your payment. 6. We only ship to confirmed order addresses. Your order address MUST MATCH your address. Why choose us ? 1.Started export since the year of 2006,with quick response to serve the oversea customers 2.Have already passed the strict quality inspection of ISO9001:2000 quality management system 3.Strong R&D Team to design and test products 4.Professional designers and technicians to provide technical assitance 5.Strict quality control process with strict standards 6.Strong installation consulting support 7.Quick after-sale technical advice and guidance. Guarantee 1. Guarantee:365 days after selled for defective items . (excluding items damaged and/or misused after receipt) 2. During guarantee,the items share free repairs or replacement. 3. Buyer is responsible for the freight come-and-go,and the custom tax. 4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together. 5. Please repack the item carefully. Items returned will be tested and a new replacement will be shipped to the buyer immediately when found defective. In the event that a suitable replacement is not available then a refund will be issued. Shipping, handling and insurance fees are non refundable. 6. Pls provide the defective appearance and related invoice number. 7.We do not repair or replace item with an expired warranty. 8.All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
